Instagram System Design Interview: Designing a Scalable Session Management System

Modern web applications demand secure, fast, and scalable session management systems to support millions of users across devices and platforms.

In this post, we walk through a complete design of a production-ready session management system — covering both functional and non-functional requirements, traffic estimations, API and database design, architecture decisions, trade-offs, and failure scenarios.

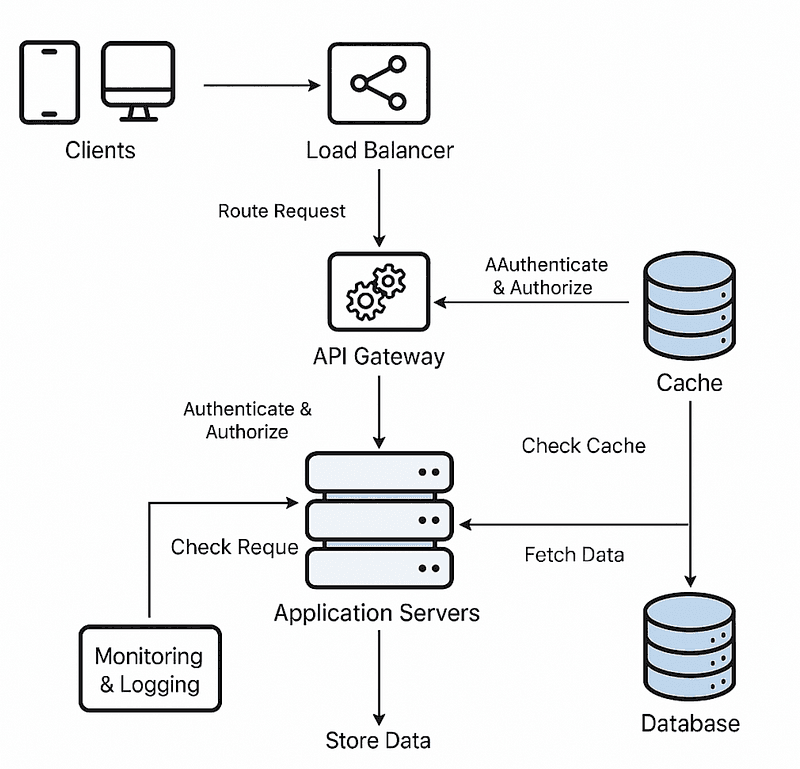

System Design Diagram for Session management service

Functional Requirements

Session Creation

• Initiated on user login.
• Generates a globally unique sessionId using a UUID or cryptographically secure random string.
• Persists user-related metadata such as userId, ipAddress, userAgent, deviceId, and a computed expiration timestamp.

Session Retrieval

• Retrieve session data using sessionId, primarily for authentication and validation purposes.
• Allow listing all active sessions associated with a user, useful for device management or security dashboards.

Session Update

• Extend or reset session expiry to accommodate active usage.
• Modify metadata fields like lastSeen, geoLocation, or custom flags like MFA status.

Session Deletion

• Explicit deletion triggered by logout or device revocation.
• Automatic TTL-based cleanup when sessions expire.
• Bulk deletion capability for admin or security workflows.

Session Validation

• Used in API request middleware to verify session validity and expiry.
• Cross-check sessionId with cache/database, ensure token freshness.

Concurrency Handling

• Ensure atomicity in session updates, especially with rolling expiry or lastSeen timestamps.
• Use optimistic locking (e.g., versioning or ETags) or distributed locks if needed.

Scalability

• Horizontal scaling for stateless session services.
• Session store and cache should scale independently to handle throughput peaks.

Security

• Session IDs must be cryptographically strong and unpredictable.
• Enforce secure transmission (HTTPS), and encrypt sensitive data at rest.
• Implement protection against session fixation, hijacking, and reuse.

Non-Functional Requirements

• Performance: Average latency below 10ms for reads, <50ms for writes under peak load. Handle 10,000+ RPS.
• Reliability: Service should maintain 99.99% uptime, with regional failover and replication.
• Scalability: Should support elastic horizontal scaling via container orchestration platforms like Kubernetes or ECS.
• Consistency: Eventual consistency acceptable for reads; strong consistency for writes in critical paths.
• Security: Enforce TLS 1.2+, audit logs for session access, token revocation support.
• Resilience: Graceful degradation, retries with exponential backoff, health probes for orchestration.

Traffic Estimation and Data Volume

Assumptions:

• 10 million Daily Active Users (DAUs), each logging in once daily.
• Sessions live for an hour, but average activity window is 30 minutes.
• 10x spike during peak hours (e.g., product launch).
• Session object size is approximately 1 KB.
• Sessions retained for 30 days for audit or analytics.

Write Operations (per day):

• Session creations: 10 million
• Session updates: 2 million
• Session deletions: 10 million (either explicit or TTL-based)

Read Operations (per day):

• Session retrievals: 40 million (e.g., token-based auth middleware)
• Session validations: 40 million (e.g., protected API endpoints)

Storage Requirements:

• 10 GB/day → 300 GB/month raw
• 3x replication = ~900 GB including fault tolerance
• Cached sessions (hotset) estimated at ~500k concurrent sessions during peak

API Design (RESTful)

Create Session

• POST /sessions
• Payload: { "userId": "...", "deviceInfo": "...", "ipAddress": "..." }
• Response: { "sessionId": "...", "expiry": "..." }

Get Session

• GET /sessions/{sessionId}
• Returns full session metadata if active

Update Session

• PUT /sessions/{sessionId}
• Allows mutation of expiry timestamp, additional data

Delete Session

• DELETE /sessions/{sessionId}
• Performs hard delete or marks session as invalid

Validate Session

• GET /sessions/{sessionId}/validate
• Returns { "isValid": true/false, "expiry": "..." }

List Sessions by User

• GET /users/{userId}/sessions
• Returns all active sessions for a user

Database Design and Access Pattern

Primary Storage: NoSQL Document DB (MongoDB, DynamoDB)

• Schema-less nature supports evolving session structure.
• Indexed fields: sessionId (PK), userId, expiry
• TTL index on expiry for automatic cleanup
• Writes are idempotent; conditional updates for race protection

Redis Cache Layer

• Store sessionId -> minimal session data (e.g., expiry, userId)
• TTL in Redis mirrors DB expiry
• LRU eviction, distributed using Redis Cluster or Elasticache
• Cache invalidation on session deletion

Optimization Strategies

• Shard MongoDB by userId to balance load
• Use batched writes for high-throughput updates
• Backfill analytics store with access logs (e.g., for dashboarding or ML fraud detection)

High-Level Architecture Overview

• API Gateway: Authenticates client tokens, enforces quotas, routes requests
• Load Balancer: Distributes traffic to service replicas
• Session Service: Stateless microservice, implements full session lifecycle
• Redis: Caches active sessions for low-latency validation
• MongoDB/DynamoDB: Durable session storage, indexes, TTL management
• Monitoring: Prometheus, Grafana, alerting pipelines
• CI/CD: Rollbacks, blue/green deployments, integration with auth providers (e.g., Auth0)

Design Trade-offs and Justifications

• SQL vs. NoSQL: SQL offers strong consistency and joins but lacks horizontal scalability for high-write workloads. NoSQL like DynamoDB/MongoDB enables flexible schema and linear scalability, at the cost of complex transactions.
• Caching: In-memory caching (e.g., Redis) drastically improves read latency and offloads database reads, especially for validation. Risk of cache staleness is mitigated with TTLs and write-through patterns.
• Strong vs. Eventual Consistency: Strong consistency is critical during login/logout, but eventual consistency is acceptable for listing sessions or updating metadata like lastSeen.
• Deployment Architecture: Stateless services deployed via Kubernetes or ECS simplify horizontal scaling. Each component is separately autoscaled and monitored.
• Session Token Security: Prefer short-lived tokens with refresh tokens over long-lived sessions. Consider token binding to IP or device fingerprint to reduce hijacking risk.

Fault Tolerance and Failure Scenarios

• Service Failures: Auto-healing pods, health checks, and circuit breakers.
• Data Corruption: Write-ahead logs, daily backups, and alerting on data integrity anomalies.
• Network Partitions: Graceful degradation and retry logic.
• Cache Miss or Eviction: Fallback to DB, pre-warming strategies for login spikes.
• Security Breaches: Token revocation lists, IP throttling, geofencing, anomaly detection pipelines.
• Region-Level Outage: Multi-region failover, global DNS load balancing.

Other Considerations for Session Management

• Use signed, encrypted JWTs with limited lifespan
• Leverage opaque tokens for session IDs (stored in backend only)
• Implement token rotation, idle timeout, and absolute expiry
• Avoid storing sensitive user data in session payloads
• Provide end-user visibility into active sessions with ability to revoke

Final Thoughts

Session management at scale is a foundational system for modern applications and demands a robust design that addresses correctness, security, observability, and efficiency. With a combination of stateless microservices, efficient cache usage, and distributed databases, it is possible to support millions of concurrent users without compromising performance or reliability.
