Object Oriented Design Interview: Designing a Music Player System

Music-Player Design is a well-known object oriented design question, abstracted from a very common component we are using. Creating a music player system using an object-oriented approach involves designing classes that encapsulate key functionalities, ensuring modularity, reusability, and maintainability. Below is an object-oriented design for a robust music player system.

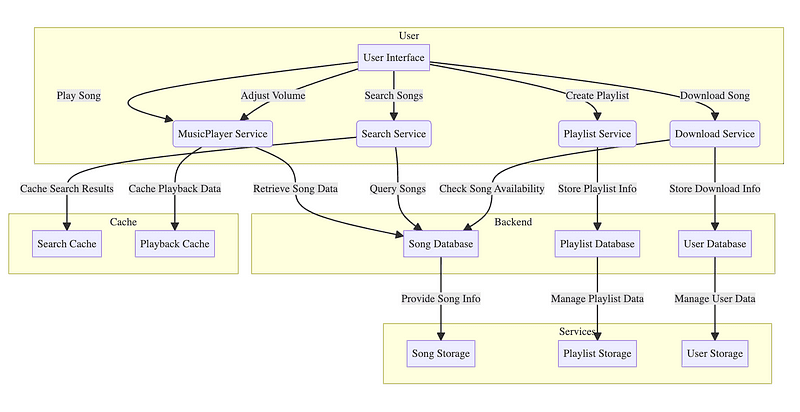

System Design Diagram — Design Music Player

1. Core Components

Music Library

The MusicLibrary class manages the collection of songs, playlists, and metadata. Objects in this domain model real-world entities: Song, Playlist, and MusicLibrary. Relationships between these objects are established through composition; for example, a Playlist contains multiple Song objects, and a MusicLibrary holds multiple Playlist and Song objects.

class Song:
def __init__(self, title: str, artist: str, album: str, duration: float, file_path: str):
self.title = title
self.artist = artist
self.album = album
self.duration = duration
self.file_path = file_path

def play(self):
print(f"Playing {self.title} by {self.artist}")

class Playlist:
def __init__(self, name: str):
self.name = name
self.songs = []
def add_song(self, song: Song):
self.songs.append(song)
def remove_song(self, song: Song):
self.songs.remove(song)
class MusicLibrary:
def __init__(self):
self.songs = []
self.playlists = []
def add_song(self, song: Song):
self.songs.append(song)
def create_playlist(self, name: str):
playlist = Playlist(name)
self.playlists.append(playlist)
return playlist

2. Music Streaming

Streaming & Caching

The StreamingService class handles music streaming, buffering, and caching mechanisms. To reduce latency and improve scalability, we implement caching mechanisms using an in-memory data structure (e.g., Redis or an in-memory dictionary). Songs frequently accessed are stored in a cache to optimize retrieval time.

class StreamingService:
def __init__(self):
self.cache = {}

def stream_song(self, song: Song):
if song.file_path in self.cache:
print(f"Streaming {song.title} from cache")
else:
print(f"Streaming {song.title} from source")
self.cache[song.file_path] = song

3. User Interaction & Interface

User and Authentication

The User class manages user authentication and playlist preferences. Users have a one-to-many relationship with playlists, meaning a single User can own multiple Playlist objects.

class User:
def __init__(self, username: str, email: str):
self.username = username
self.email = email
self.playlists = []

def create_playlist(self, name: str):
playlist = Playlist(name)
self.playlists.append(playlist)
return playlist

Music Player Controller

The MusicPlayer class provides playback control features.

class MusicPlayer:
def __init__(self):
self.current_song = None
self.is_playing = False
def play(self, song: Song):
self.current_song = song
self.is_playing = True
song.play()
def pause(self):
if self.is_playing:
print("Music paused")
self.is_playing = False
def stop(self):
if self.current_song:
print(f"Stopping {self.current_song.title}")
self.current_song = None
self.is_playing = False

4. Design Patterns

• Singleton Pattern: Used for StreamingService to maintain a single cache instance across requests, ensuring that multiple requests share the same caching mechanism and reducing redundant computations.
• Factory Pattern: Applied to MusicLibrary for dynamically creating Playlist objects. This ensures a centralized and structured way to instantiate objects while promoting code reusability.
• Observer Pattern: Implemented for RecommendationEngine to notify users of new recommended songs. It allows the system to update users asynchronously when new recommendations are generated based on listening history.
• Decorator Pattern: Applied to the MusicPlayer class to extend functionality dynamically, such as adding equalizers or audio effects without modifying the core class.
• Proxy Pattern: Used for managing streaming requests efficiently, handling authorization checks before accessing the actual StreamingService.
• Strategy Pattern: Implemented in RecommendationEngine to switch between different recommendation algorithms (e.g., collaborative filtering, content-based filtering, hybrid models) dynamically based on user behavior and system load.

5. Recommendation System

The RecommendationEngine class provides personalized music suggestions based on user listening history. A many-to-many relationship exists between User and Song, where users listen to multiple songs, and songs are played by multiple users.

class RecommendationEngine:
def __init__(self):
self.user_history = {}
def record_listening(self, user: User, song: Song):
if user.username not in self.user_history:
self.user_history[user.username] = []
self.user_history[user.username].append(song)
def recommend(self, user: User):
if user.username in self.user_history:
return self.user_history[user.username][-1]
return None

6. Data Storage & Security

Database Management

We choose a hybrid approach, combining relational and NoSQL databases:

• Relational Database (PostgreSQL, MySQL): Stores structured data such as user accounts, playlists, and song metadata.
• NoSQL (MongoDB, Redis): Stores less structured data such as listening history and caching frequently played songs.

Using an ORM (e.g., SQLAlchemy) ensures that object relationships are well managed and scalable.

class DatabaseManager:
def __init__(self):
self.users = {}
self.songs = {}
def add_user(self, user: User):
self.users[user.username] = user
def add_song(self, song: Song):
self.songs[song.title] = song

6. Scalability & Latency Optimizations

• Load Balancing: Distribute traffic across multiple servers using a load balancer to handle peak loads efficiently. Technologies such as Nginx, HAProxy, or cloud-based solutions like AWS Elastic Load Balancing (ELB) can be utilized.
• Microservices Architecture: Decomposing services like MusicLibrary, StreamingService, and RecommendationEngine into separate services enhances scalability. Each microservice can be deployed independently and scaled based on demand.
• CDN (Content Delivery Network): Leveraging CDNs such as Cloudflare or AWS CloudFront minimizes latency by caching music content closer to users.
• Edge Caching: Storing frequently accessed songs at edge locations further reduces buffering delays and enhances playback speed.
• Auto-scaling Infrastructure: Utilizing cloud providers like AWS, GCP, or Kubernetes-based orchestration to dynamically scale resources based on user demand ensures high availability and cost efficiency.
• Efficient Data Partitioning: Distribute large datasets across multiple database shards to balance the query load and improve performance.
• Async Processing & Event-Driven Architecture: Implementing message queues such as Kafka or RabbitMQ for background processing helps handle spikes in request load.

8. Failure Scenarios

• Network Failure: Implement retry mechanisms for failed streaming requests using exponential backoff strategies.
• Database Downtime: Implement fallback mechanisms like a read-replica setup or failover databases using PostgreSQL replication or AWS RDS Multi-AZ deployments.
• High Load: Introduce rate limiting via API gateways like AWS API Gateway or Kong to prevent service abuse and ensure fair usage.
• Corrupted File: Validate file integrity before adding it to the MusicLibrary by using checksums (MD5, SHA-256) and performing automated health checks.
• Cache Inconsistency: Implement cache invalidation strategies like write-through or write-back caching to ensure consistency between cached and persistent data.
• Service Downtime: Deploy circuit breakers (Netflix Hystrix, Resilience4j) to gracefully degrade system functionality when dependent services fail.

Conclusion

This object-oriented design provides a structured and scalable foundation for building a music player system. By breaking down functionalities into modular classes, ensuring efficient data storage, optimizing for scalability and latency, implementing security best practices, leveraging design patterns, and preparing for failure scenarios, we create a robust and efficient music player system for an optimal user experience.

Full Answer: https://bugfree.ai/practice/object-oriented-design/music-player/solutions/2fyLqDeQV8E173fB

System Design Solution — Design Music Player
