System Design Interview: How to Build Low‑Latency Live Streaming (What Actually Matters)

Low latency = the time from camera capture to viewer playback. In system-design interviews you should (1) explain where latency is introduced in the pipeline, and (2) show practical levers to reduce it. Below is a concise, interview-ready guide with the levers that actually matter.

Why it matters (quick numbers):

• WebRTC-style setups: typically < 500 ms (real-time)
• Low-latency HLS / CMAF: ~2–6 s
• Traditional HLS/DASH: 10–30+ s

If an interviewer asks “how would you reduce delay?”, walk through the pipeline and then discuss the four primary levers below. Finish with buffer tuning, monitoring, and iterative testing.

---

Where latency comes from (brief pipeline)

1. Capture & frame grab (camera encoding pipeline latency)
2. Encode (software/hardware encoder, GOP/keyframe interval)
3. Transport to origin (ingest, network RTT, packet loss recovery)
4. Server processing & CDN hops (packaging, transmuxing, edge propagation)
5. Player download & buffering (chunk boundaries, player jitter buffer)
6. Decode & render (decoder latency, frame pacing)

Mention these components, then propose concrete tradeoffs and mitigations.

---

The 4 levers that matter

1) Encode fast

• Use hardware encoders (NVENC, QuickSync) for predictable, low-latency encode.
• Choose low-latency encoder presets (tuned for speed over compression).
• Reduce GOP / keyframe interval — shorter GOP lowers segment latency and speeds recovery but increases bitrate overhead.
• Use constant bitrate (CBR) or tightly controlled rate control for stable delivery.
• Tune encoder settings: lower lookahead, disable B-frames (or reduce them), and reduce encoder buffering.

Why: encoding delay can be hundreds of milliseconds to seconds depending on settings. Fast encoding reduces the first major chunk of E2E latency.

2) Pick the right protocol

• RTMP: common for ingestion to servers (low complexity) but not ideal for final delivery to modern browsers.
• WebRTC: best for ultra-low-latency (<500 ms), two-way comms, built-in NAT traversal and congestion control. Native in browsers — great for interactive apps.
• SRT / RIST: designed for low-latency contribution and resilient transport over lossy networks. Good for contribution and backbone links, not browser playback.
• Low-latency HLS / DASH (CMAF, chunked-transfer): lowers segment latency vs classic HLS but usually still ~2–6s.

Tradeoffs: WebRTC gives the lowest latency but higher server complexity and cost (SFU/MCU and more CPU). SRT/RIST are excellent between encoders and origin/CDN but require additional tooling for browser delivery.

3) Use a low‑latency CDN and push content to the edge

• Push vs pull: pushing segments or establishing a persistent stream to edge reduces origin RTTs.
• Choose CDNs or edge networks that support WebRTC or low-latency HLS/CMAF.
• Use edge transcoding to avoid round-trips to origin for multiple renditions.
• Minimize hops and use geo-routing to reduce network RTT.

Why: network and hop count multiply latency. A nearby edge node with the stream already available drastically reduces startup and per-chunk delays.

4) Adaptive bitrate (ABR) and smooth playback

• Create a multi-bitrate ladder and enable ABR switching so clients pick a stable rendition for current conditions.
• Make renditions aligned on the same keyframe boundaries to allow instant switching.
• Favor smaller chunks/segments for faster switch and lower rebuffer latency (but watch overhead).
• Consider player-side strategies: start with a conservative (lower) bitrate for fast startup then ramp up.

Why: under changing network conditions, ABR prevents rebuffering and reduces perceived latency even if raw network RTT is unchanged.

---

Tuning buffers, reliability and recovery

• Player buffer (playout delay): smaller buffer reduces apparent latency but increases vulnerability to jitter and packet loss.
• Jitter buffer: tuned to smooth network variability without adding unnecessary delay.
• Packet-loss strategies: FEC and forward error correction reduce retransmission needs; ARQ introduces extra RTTs and increases latency.
• Retransmits vs FEC: prefer FEC (proactive) where latency is critical; ARQ/Retransmit is acceptable for slightly higher-latency use cases.

---

Monitoring and metrics (what to measure)

• End-to-end latency (capture → render): the single most important metric.
• Startup time, rebuffer events, and average buffer level.
• Packet loss, jitter, and round-trip time (RTT).
• bitrate achieved vs target, dropped frames, encoder lag.
• Per-edge/cdn and per-region metrics to find hotspots.

Use synthetic tests and real-user telemetry. Plot percentiles (p50, p95, p99) — p95/p99 matter for worst-case viewer experience.

---

Interview tips — how to present this under interview time pressure

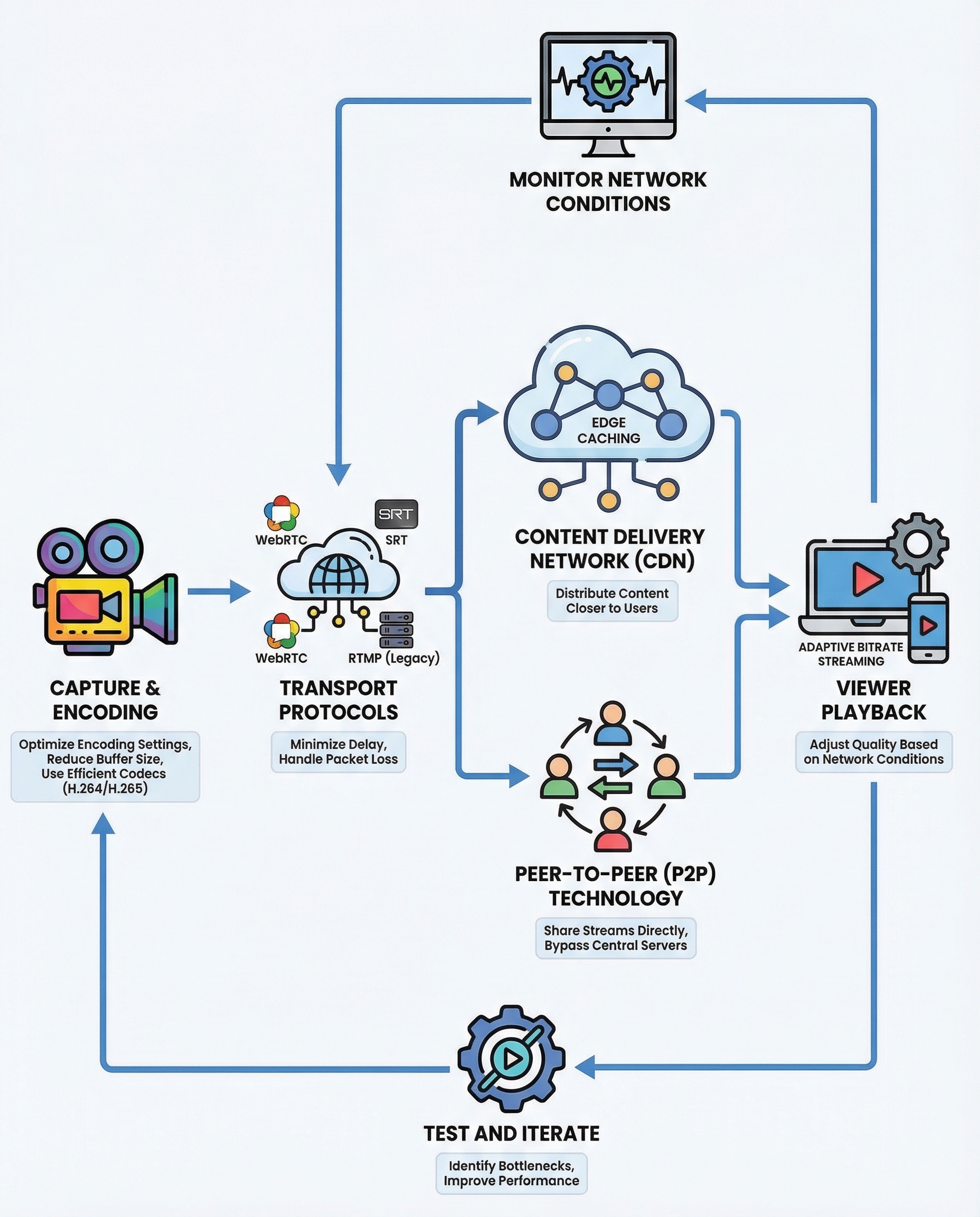

• Draw the pipeline: camera → encoder → transport → origin → CDN edge → player.
• For each hop, name the latency source and one mitigation (e.g., "encoder: use NVENC and lower GOP").
• Quantify targets and tradeoffs: "We can get to <500 ms with WebRTC and proper edge SFUs, or ~2–6 s with LL-HLS while saving complexity/cost."
• Discuss cost/complexity tradeoffs: lower latency often means more CPU, more edge capacity, and more complex infra.
• Mention measurable goals and monitoring to iterate after launch.

---

Quick checklist (practical action items)

• Use hardware encoders and low-latency presets.
• Choose protocol based on requirements: WebRTC for ultra-low latency, SRT for contribution, LL-HLS/CMAF for near-real-time delivery.
• Push to low-latency edge CDN and consider edge transcoding.
• Implement ABR with aligned keyframes and small chunk sizes.
• Tune player buffers and enable FEC where appropriate.
• Instrument end-to-end metrics and iterate based on p95/p99.

---

Low-latency streaming is about tradeoffs: latency vs reliability vs cost. In interviews, show you understand where delays come from, propose concrete levers (encode, protocol, CDN, ABR), and finish with monitoring and iteration.
