Coffee Machine OOD: Stop Mixing UI, Payment, and Brewing Logic

In a coffee machine system-design interview, the clearest winning move is to enforce a strict separation of concerns. The CoffeeMachine should orchestrate components — not implement every feature itself. Let small, focused modules own their responsibilities:

• UserInterface: input/output, presentation, user interactions
• PaymentSystem: transaction processing, payment validation
• Brewer / TemperatureController: brewing logic, temperature management

This avoids a "god object," isolates failures (a UI freeze shouldn't break brewing), and makes safe extension possible (add Apple Pay or a new CoffeeType without rewriting the core flow). Interviewers look for designs that can change safely and predictably.

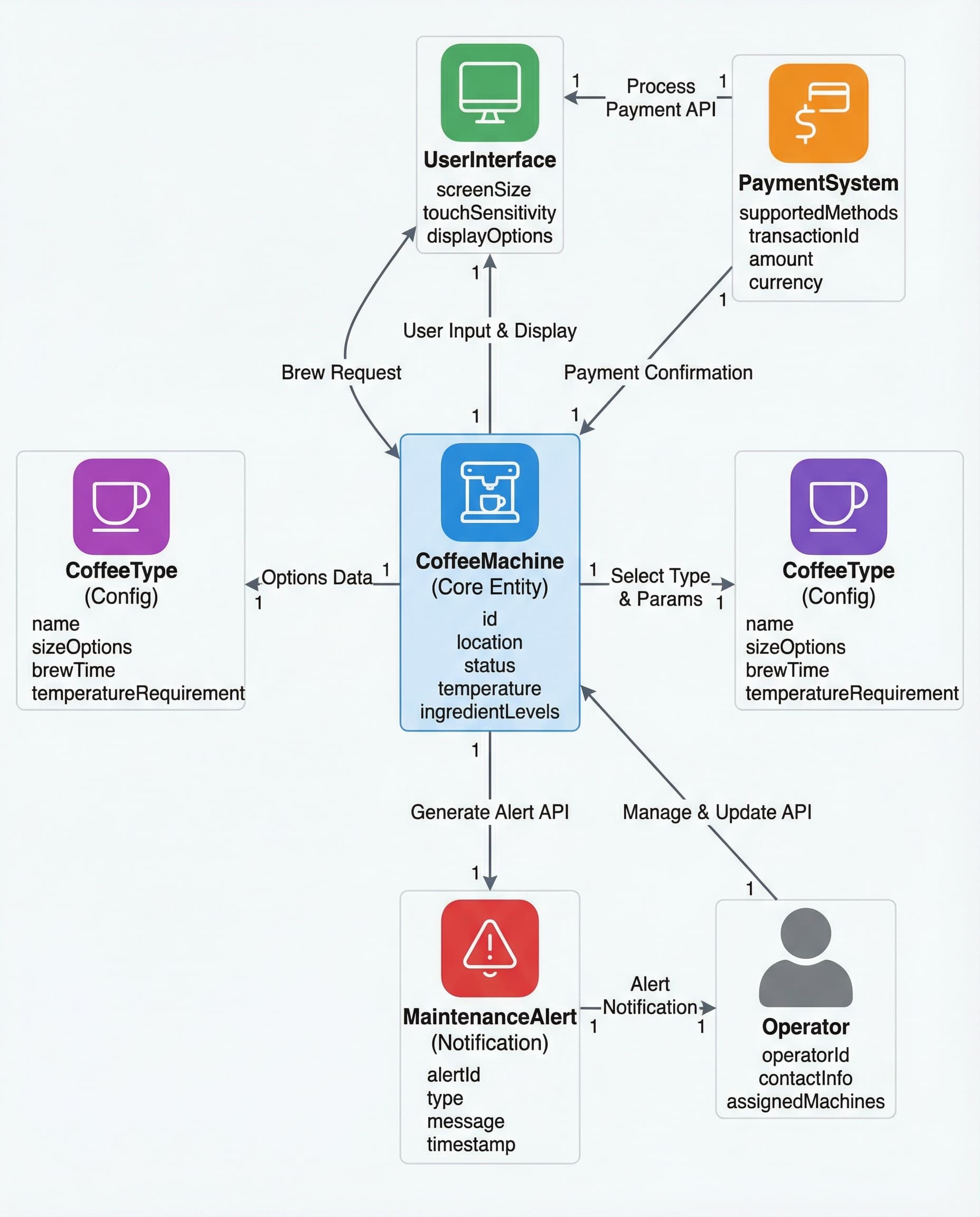

Recommended components and responsibilities

• UserInterface

  • Collects user choices (menu, size, strength)
  • Displays status and errors
  • Translates user actions into high-level commands (e.g., "startBrew(coffeeType, size)")

• PaymentSystem

  • Handles payment initiation and confirmation
  • Exposes simple outcomes (success, failure, pending)
  • Isolates gateway specifics (Apple Pay, NFC, card reader)

• BrewController (Brewer)

  • Executes brew recipe steps (grind, water flow, extraction time)
  • Controls temperature via TemperatureController
  • Reports progress and final status

• TemperatureController

  • Maintains target temperature
  • Exposes stable readouts and alerts

• CoffeeMachine (Orchestrator)

  • Coordinates the above components
  • Applies business rules (e.g., require successful payment before brew)
  • Handles retries, timeouts, and compensations

Interaction flow (example)

1. UI collects order and requests payment.
2. UI asks PaymentSystem to authorize.
3. PaymentSystem returns success/failure asynchronously.
4. On success, CoffeeMachine instructs BrewController to begin.
5. BrewController uses TemperatureController and reports progress.
6. On completion or error, CoffeeMachine notifies UI and optionally refunds via PaymentSystem.

Why this separation matters

• Avoids god objects: responsibilities are small and testable.
• Failure isolation: UI or payment issues won't stop brewing hardware logic.
• Easier extensions: add new payment methods or coffee recipes by implementing small adapters.
• Safer changes: modify one component without cascading side effects.

Common mistakes to avoid

• Embedding payment logic inside the UI or brewer.
• Letting the CoffeeMachine class hold all business and hardware code.
• Mixing synchronous blocking calls across layers (causes UI freezes).

How to show this in an interview

• Start by naming components and their responsibilities.
• Sketch a simple sequence of interactions (who calls whom and why).
• Mention failure modes and how you would handle them (timeouts, retries, partial failures).
• Show how you'd add features (e.g., Apple Pay or a new CoffeeType) with minimal change.

Small example (pseudocode interfaces)

interface IPaymentSystem {
  Task<PaymentResult> authorize(PaymentInfo info);
}

interface IBrewController {
  Task<BrewResult> startBrew(CoffeeType type, Size size);
}

class CoffeeMachine {
  void processOrder(Order order) {
    var payment = paymentSystem.authorize(order.payment);
    if (payment.success) brewController.startBrew(order.type, order.size);
  }
}

Keep each module small and focused. In interviews, designs that separate concerns, handle errors, and demonstrate safe extensibility score highly.
